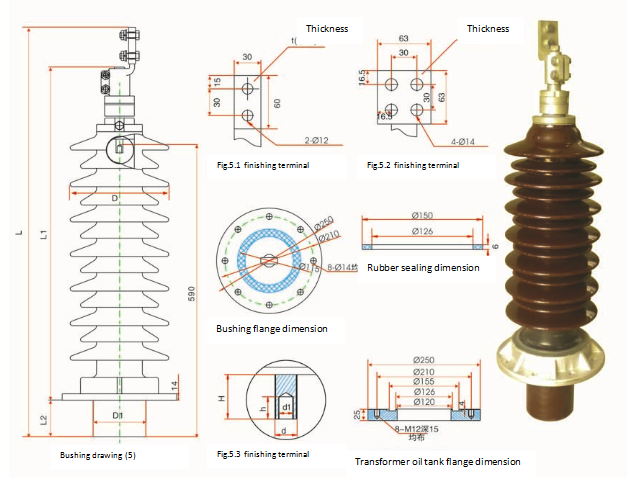

■ Outline dimension
■ Bushing technical parameters and outline dimension
|
|
|
|
|
|
|
|
|||||||||
|
L |
L1(±10) |
L2 |
D |
D1 |
Map |
t
|
Map |
H |
h | d | d1 | ||||
|
WTFTG.4050 |
BFW-40.5KV/50A-4 |
875 |
655 |
140
|
205 |
115 |
Map5.1 |
10
|
Map4.3 |
30 |
15 | 15 | 10 |
7 Big 6 small |
1256 |
|
WTFTG.4051 |
BFW-40.5KV/100A-4 |
875 |
655 |
140 |
205 |
155 |
Map5.1 |
10
|
Map4.3 |
30 |
20 | 20 | 15 |
7 Big 6 small |
1256 |
|
WTFTG.4052 |
BFW-40.5KV/250A-4 |
875 |
655 |
140 |
205 |
155 |
Map5.1 |
10
|
Map4.3 |
30 |
20 | 25 | 15 |
7 Big 6 small |
1256 |
|
WTFTG.4053 |
BFW-40.5KV/315A-4 |
875 |
655 |
140
|
205 |
155 |
Map5.2 |
12
|
Map4.4 |
30 |
20 | 25 | 18 |
7 Big 6 small |
1256 |
|
WTFTG.4054 |
BFW-40.5KV/630A-4 |
875 |
655 |
140 |
205 |
155 |
Map5.2 |
12
|
Map4.4 |
45 |
35 | 30 | 28 |
7 Big 6 small |
1256 |
